Westinghouse 53640EC1

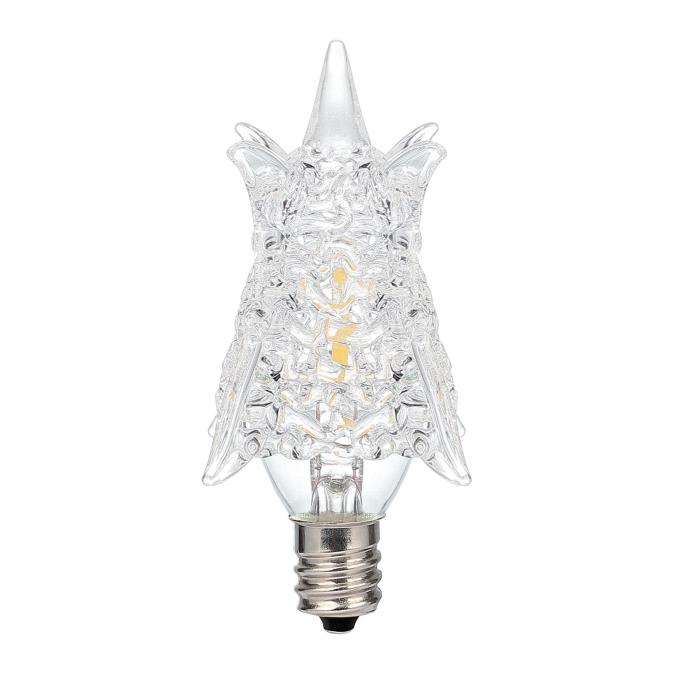

Westinghouse Lighting Star 0.6-Watt (7-Watt Equivalent) Candelabra Base Clear Dimmable Filament LED
This is a 0.6-watt led with a Star envelope and E12 base. It produces 50 lumens. The listed light color is 3000 K warm white. The maker positions it around a 7-watt incandescent replacement class.
View the official record ↗Source citation, not a buying link.Before replacing it
Five checks decide the fit
A shared base or wattage alone is not enough. Work down the list with the old bulb and fixture label in hand.
- 01
Socket
Match E12 exactly. The Star code describes the bulb envelope, not the socket. Open the E12 base guide.
- 02
Electrical rating
The source lists 120 V. Confirm that against the fixture and local supply.
- 03
Brightness, not “watts”
Target about 50 lumens. The 0.6 W figure is input power, not brightness.
- 04
Physical clearance
The official maximum overall length is 2.95 inches. Check shade, cover, and neck clearance.
- 05
Heat, controls, and location
The source approves totally enclosed fixtures; it is marked dimmable; the location rating is Damp.
Normalized specifications
What the label says
These values are transcribed and normalized from the official source. A blank claim stays “not stated”; it is never filled by assumption.
- Manufacturer
- Westinghouse
- SKU / model
- 53640EC1
- Technology
- LED
- Shape
- Star
- Base
- E12
- Voltage
- 120 V
- Input power
- 0.6 W
- Incandescent equivalent
- 7 W
- Light output
- 50 lumens
- Color temperature
- 3000 K
- CRI
- 80
- Dimmable
- Yes
- Rated life
- 15,000 hours
- Beam angle
- 300°
- Location rating
- Damp
- Enclosed fixture
- Approved
- Pack quantity
- 1
Useful next check
Nearby specification matches
Same E12 base and within 35% of 50 lumens. These are comparison leads, not confirmed substitutes.
Read the specification in context
Use the record, then check the system
The label describes this lamp. These guides help connect it to the socket, room, controls, and other models from the same manufacturer.
E12 · Candelabra screw
E12 is the small screw base commonly used in decorative U.S. fixtures. The 12 refers to the approximate thread diameter in millimeters.
Open reference →Control guideDimmable vs non-dimmable LED
Read the bulb's claim separately from dimmer compatibility and fixture conditions.
Read guide →Color guide2700K vs 3000K vs 5000K
Understand how the listed color temperature changes the look of a room.
Read guide →Manufacturer indexMore Westinghouse model records
Compare verified models from the same official catalog snapshot by SKU, base, shape, power, and output.
Browse brand →Quick answers
Questions about 53640EC1
What socket does Westinghouse 53640EC1 use?
The official record identifies a E12 base. The replacement socket must use the same base code; a similar-looking bulb shape does not establish socket compatibility.
Is Westinghouse 53640EC1 dimmable?
Yes. The official record marks this model as dimmable, but the installed dimmer must also support the lamp technology and load.
Can Westinghouse 53640EC1 be used in an enclosed fixture?
The official record marks it for totally enclosed fixtures. The fixture's wattage, voltage, and clearance limits still apply.
